Description

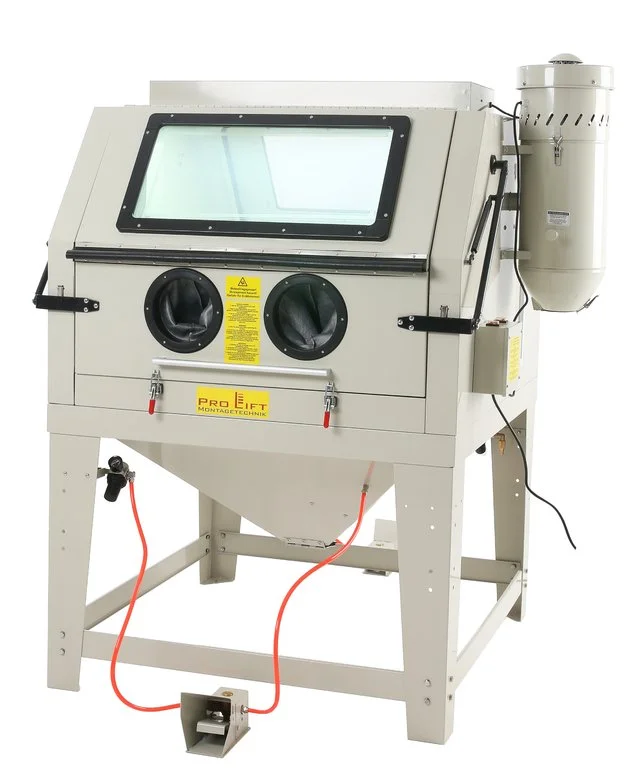

1200 litres sand blasting cabinet, with extraction device, 2 very large front doors, SB120AJ – 01580
Perfectly suitable for very large parts
Comprehensive features:
Operation by 2 foot pedals (one on the front and the other at the back)
Powder coated steel
2 very large front doors for easy loading (1130 mm x 570 mm each)
Both front doors have a rubber sealing
The doors are held by 2 lateral gas shock absorbers each
Integrated extraction device (220 V, 1200 W, with interchangeable fliter) at the rear side
2 moveable sand blasting gun with 6 interchangeable ceramic nozzles in total
The blasting pressure can be adjusted by a switch an controlled by pressure gauge
Gloves, fixed to the cabinet
Internal table grid
Very economical because of circulating blasting material
Window in the front door
15 replacements foils each for window and lighting in total
4 fluorescent tube in an extra housing with window (4×26 W neon tubes, 220 V, 16 mm diameter, length 890 mm)
Technical data:
Connection: 220 V, 50 Hz, 1200 W
Volume: 1200 litres
Operating pressure: 5.5 bar – 8.6 bar
Average air consumption: 680 litres/min
2 x air inlet: 3/8″
Incl. 2 pressure reducers and pressure gauge
Inner dimensions (width x depth x height):1160 mm x 1280 mm x 450 mm front – 820 mm middle
Outer dimensions (width x depth x height):1500 mm x 1370 mm (incl. extraction device) x 1830 mm
Weight: 200 kg
Shipping weight: 245 kg
