6.7t hook, fork head hook, sturdy cast iron safety latch, J, blue, 01375

Description

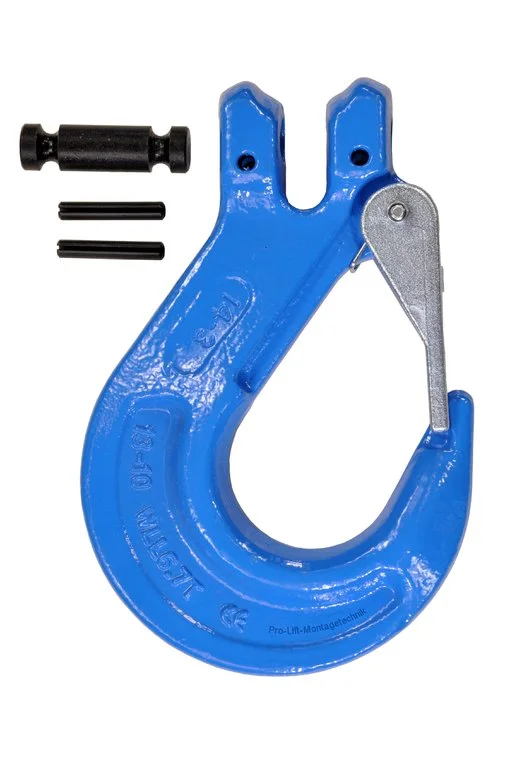

6.7t fork head hook, self locking – 01375

Size: 13 – 10 (13 = chain thickness, 10 = quality class)

The application field of this hook is pulling heavy loads in horizontal direction with winches. It has proven itself under the hardest conditions countless times.

Technical data:

Pulling capacity:                                                                6.7t

Opening width of fork:                                                        14.5 mm

The retaining bolt for the chain has a diameter of 15.7 mm.

Total length:                                                                        200 mm

Opening width of the hook in the area of the safety latch:  40 mm

Opening width of the hook below the safety latch:              56 mm

The bolt and the pictured clamping sleeve are included in the scope of delivery

The safety latch is made of sturdy cast steel and not made of thin sheet metal!

Powder coated, blue

Weight:                                                                                approx. 2.3 kg
Shipping weight:                                                                  approx. 3.5 kg
